OT-100 Multimode Single-Core OTDR

For single-core fiber testing, various models available; supports FTTx diagnostics and network maintenance.

· Multifunctional

· Platform and modular design

· Intellectualization

· Extension

· Small and portable, light weight, one hand operation

· Fault inspection of communication system at all levels

· Automatic / manual OTDR mode: multi pulse width test + automatic analysis

· High speed test, accurate results and high repeatability

· Simple operation, no training, easy to start

· Long battery life, unique replaceable smart battery

· Adapt to a variety of environments

Product Details
Specification Parameters
Document Download
Service Support
Related Products
Product Details


Product Description

The multi-functional OTDR optical filber tester of Dimension Technology can help field technicians reliably and cost effectivelyinstal, open, troubleshoot and monitor any optical network architecture. It uses OTDR test module + γ architecture of handheldgeneral test platform, and it integrates OTDR, visual fault location, optical power meter, light source and other applications. It can also expand the end face detecion function, reaize multi pulse width test + automatic analysis, and has powerful functionsto measure the length, loss, connection quality and other parameters of various optical fibers. This series of products, based onthe design of Android tablet computer, adopts 5.5-inch color touch screen, which can realize the dual operation of key andtouch: At the same time, it also has a variely of connection modes, which can be extended and connected to other test modulesand handheld devices of Dimension Technology through high-speed connector interface, WiFi, USB, etc. Or it controled by PCwith good expansibility and ease of use; Solid and reliable quality is also the consistent adherence of Dimension Technology. This series of OTDR has anti drop design and high reliability, and has become a good tool for various types of on-site opticalfiber monitoring.


Features

· Multifunctional

· Platform and modular design

· Intellectualization

· Extension

· Small and portable, light weight, one hand operation

· Fault inspection of communication system at all levels

· Automatic / manual OTDR mode: multi pulse width test + automatic analysis

· High speed test, accurate results and high repeatability

· Simple operation, no training, easy to start

· Long battery life, unique replaceable smart battery

· Adapt to a variety of environments


Application

· LAN / VAN network

· Metropolitan area network

· FTTx network

· Date center

· Optical teaching and research

· Fiber / optical cable product and use

· Access network

· Enterprise network

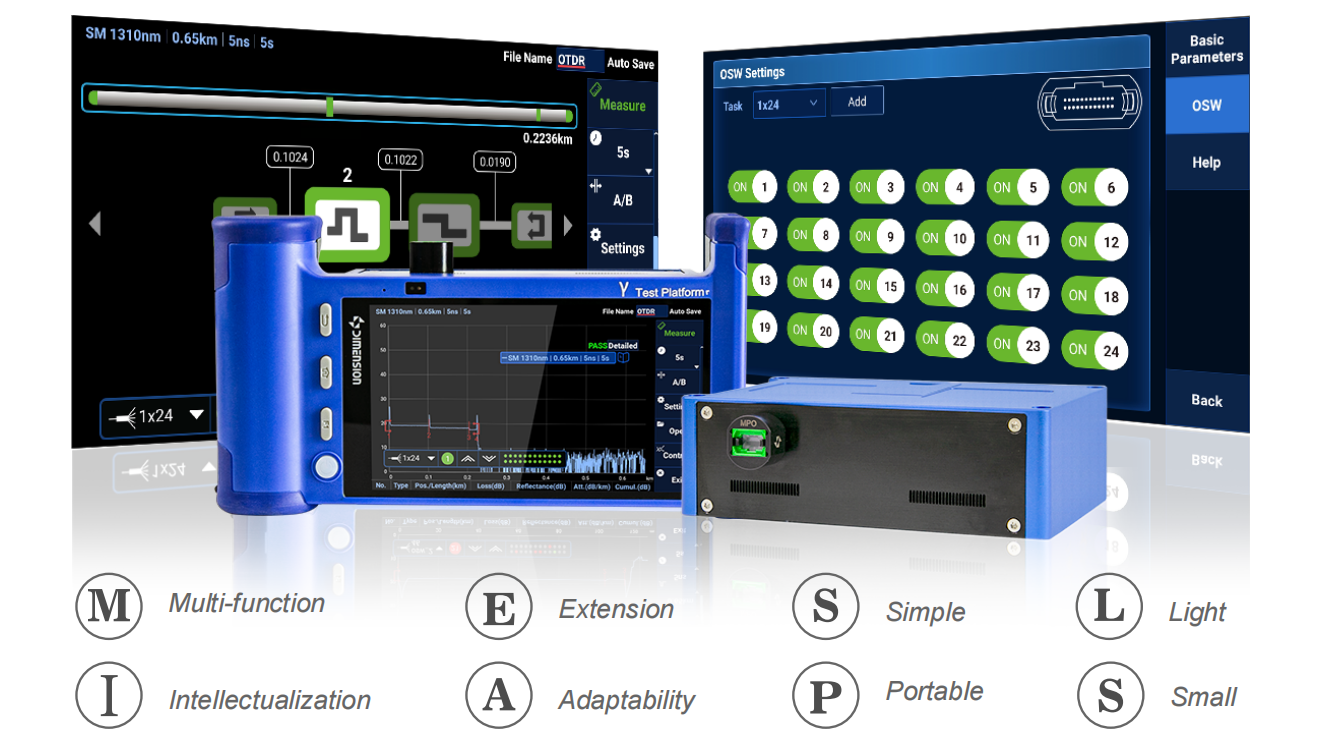

Multifunctional

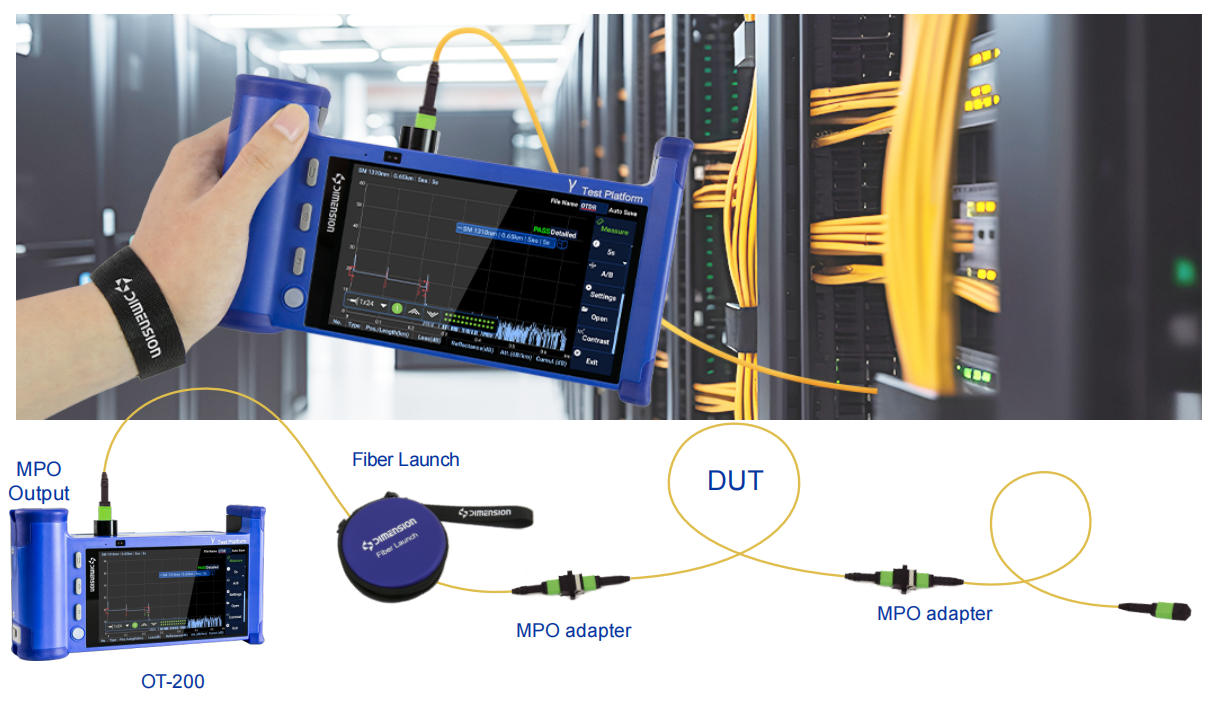

Platform and Modular Design

Dimension γ architecture of handheld general test platform provides a complete set of on-site optical test solutions. It can becompatible with a variety of field optical test modules including OTDR through high-speed connector interface, WiFi, USB and otherways, with strong scalability and easy maintenance and management. Customers can purchase other test modules and handheld devices for function expansion to realize one-stop measurement.

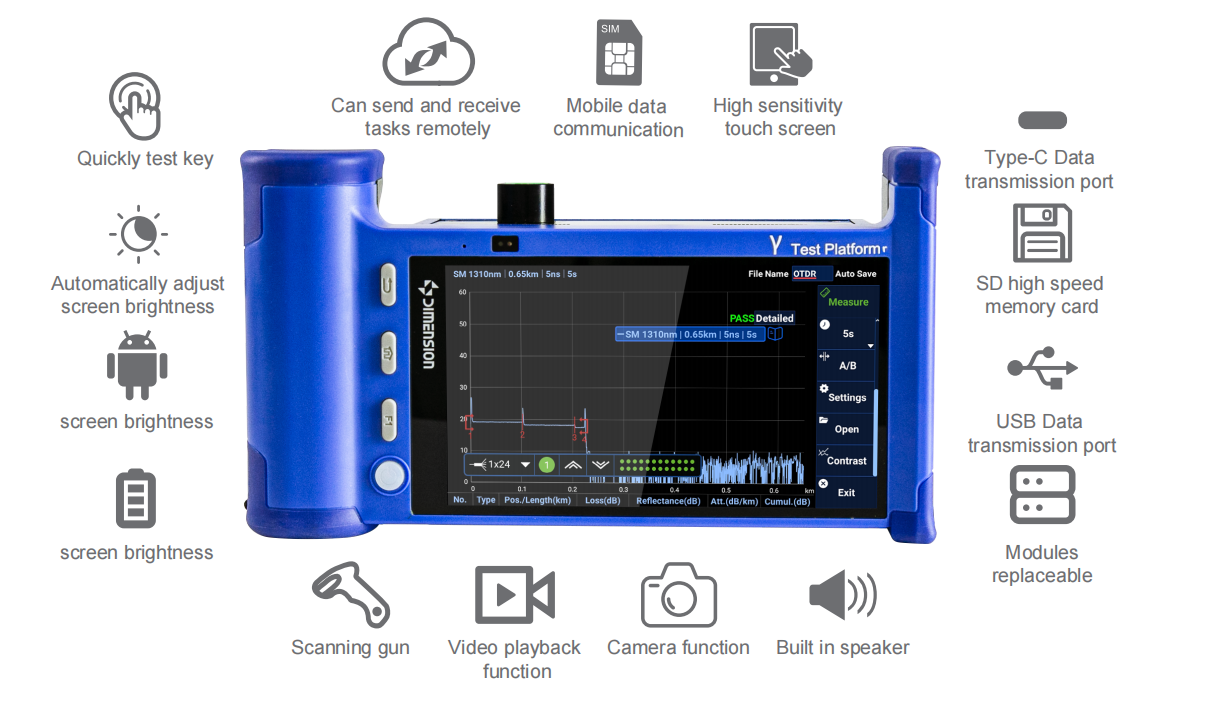

Intellectualization

The OTDR of this series is based on Android system. It has rich applicaion support of Android system. Through the application development and excellent Ul design of Dimension Technology, users can become more intelligent and humanized in the processof use, and easily complete various complex optical tests. Besides, it also has a task sending and receiving function to complete aremote work arrangement and report.


Extension

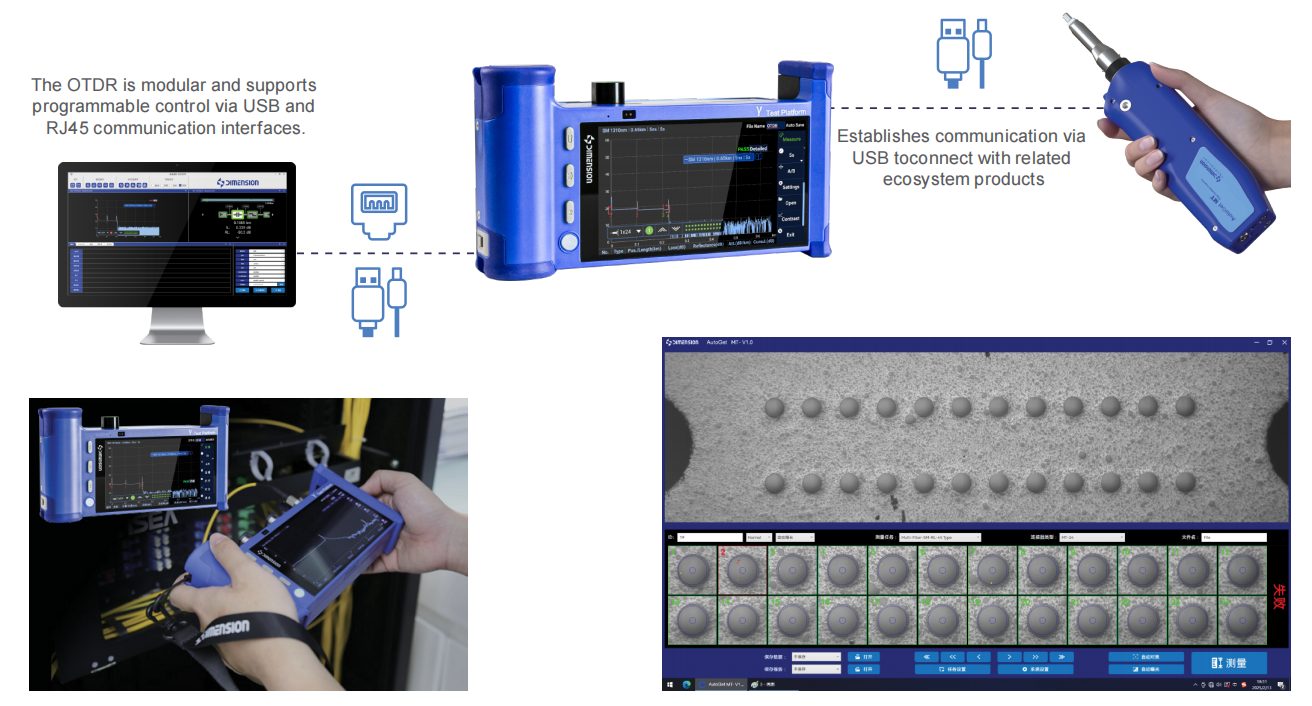

The OTDR can be perfectly integrated into the product ecological chain of Dimension Technology. lt can communicate through WiFior USB, use Dimension's app to control other test equipment and become a main device. Besides, it can also be controlled by othermain devices through WiFi or USB to become a test module in a test system.

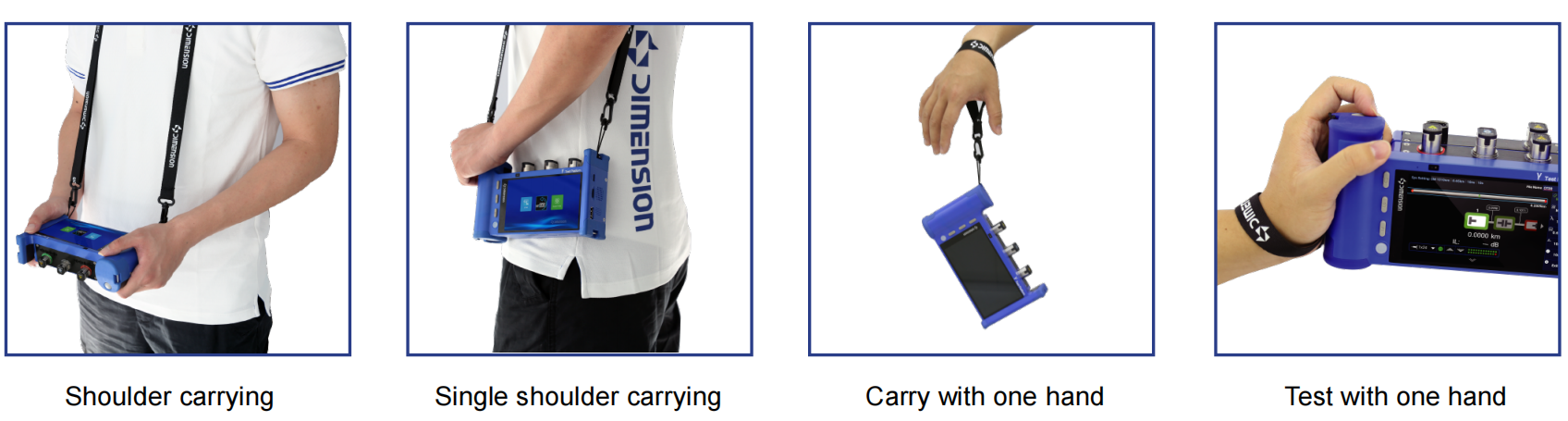

Small and portable, Light weight, One hand operation

Thanks to the excellent ergonomic design and small and portable body shape of Dimension Technology, it can be caried in diferentways, young and fashionable. In operation, just press the shortcut key to complete the test, and the data can be automatically analyzed and saved. lt only need a litle training, novice can also complete the communication fault inspection.


Fault inspection of communication system at all levels

It integrates OTDR, visual fault location, optical power meter, light source andother applications. Construction and fault inspection of communication system atall levels.

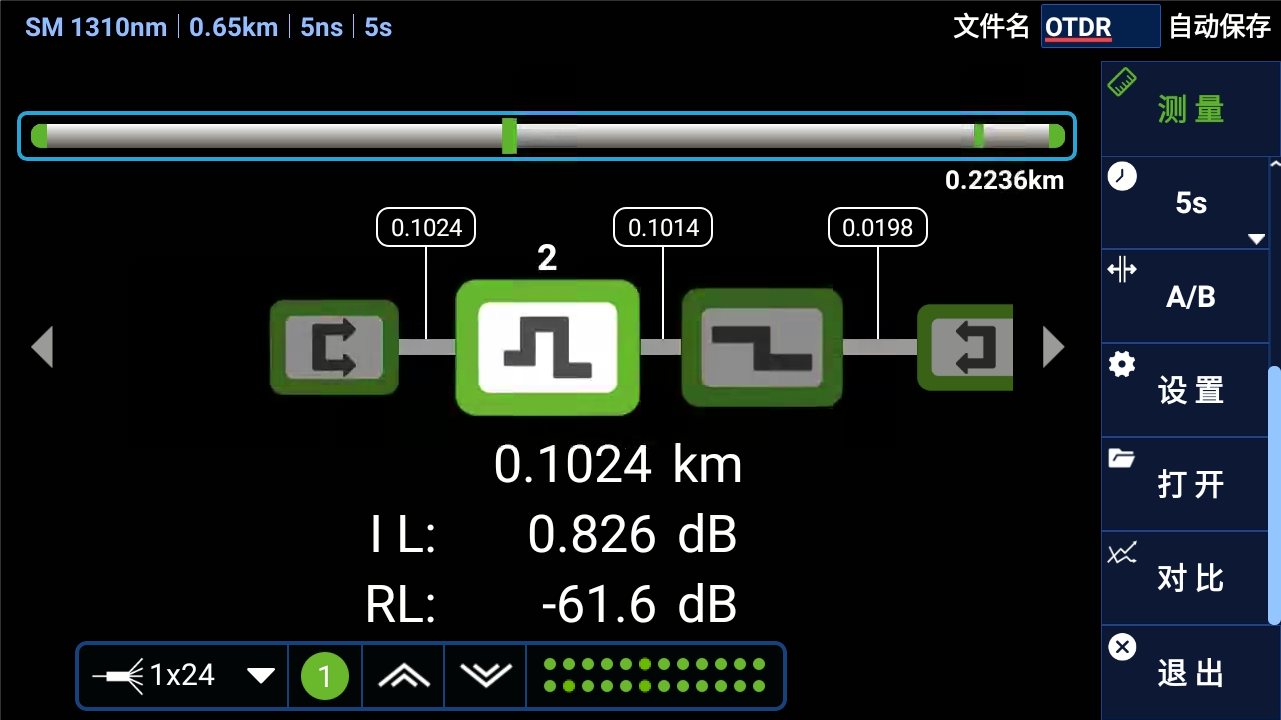

Automatic / Manual OTDR Mode

Automatic /manual OTDR mode: multi pulse width test + automaticanalysis.  Automatic mode is simple and convenient withoutinputtingthe parameters of the system to be tested. OTDR makes ajudgment by sending pulses with different bandwidth and obtains anaccurate data.

Manual mode is to input the parameters of thesystem to be tested, and then conduct an accurate positioning test, which is efficient and accurate.


High speed test, Accurate results and high repeatability

Each OTDR of Dimension technology has been specially calibrated by engineers, with fast test speed, accurate results and high testrepeatability. It avoid repeated measurements due to inaccurate tests, creating a high-efficiency environment for you.


Event

Times

Location/length (km)

IL (dB)

Reflectivity (dB)

Total (dB)

Fusion Point 1

1

0.1085

0.229

-50.2

0.300

2

0.1083

0.236

-50.2

0.307

3

0.1087

0.237

-50.3

0.308

4

0.1085

0.236

-50.4

0.307

5

0.1084

0.231

-50.1

0.302

Fusion Point 2

1

1.1194

0.198


0.827

2

1.1192

0.205


0.835

3

1.1195

0.203


0.836

4

1.1196

0.197


0.833

5

1.1194

0.201


0.833

The END

1

1.6305

-

>-28.7

0.971

2

1.6302

-

>-28.4

0.970

3

1.6303

-

>-28.7

0.974

4

1.6305

-

>-28.5

0.968

5

1.6307

-

>-28.4

0.973

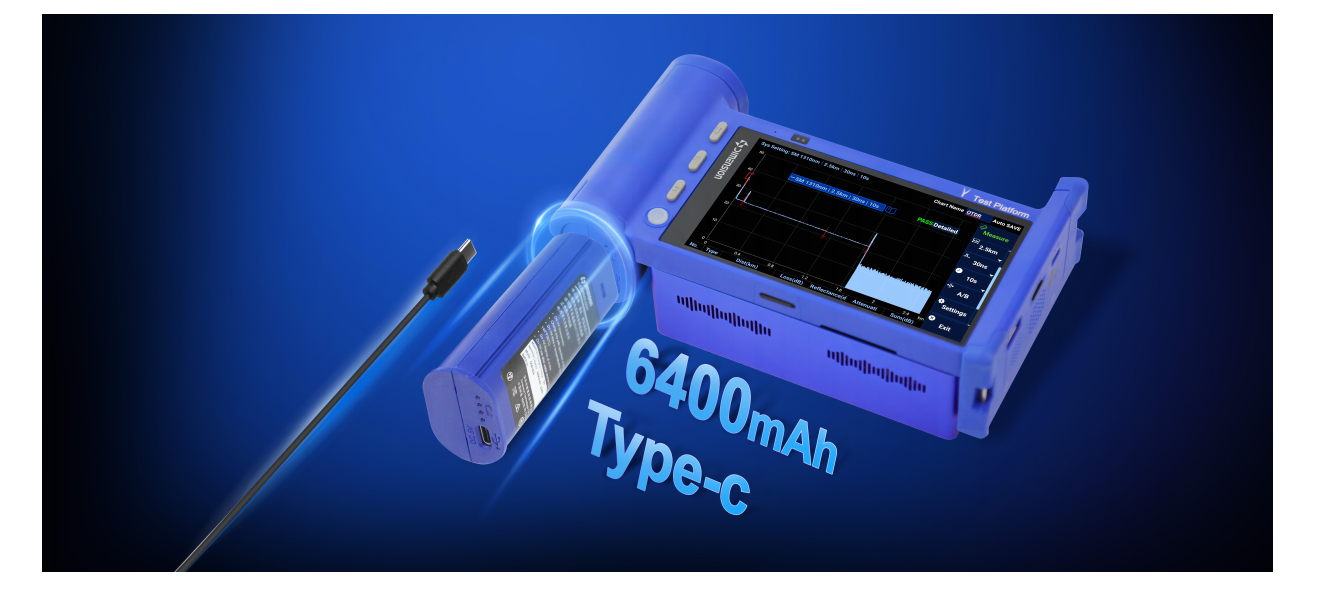

Long battery life, Unique replaceable smart battery

The whole series of OTDR of dimension technology adopts replaceable high-capacity inteligent batteries. The battery can be chargedindependently, with a life time of up to 8 hours; The batery can be replaced at any time, So that you can work without worrying aboutpower problems.


Adapt to a variety of environments

In order to cope with different scenarios and testers of different occupalions, Dimension technology has made specialy improvementsfor the reliability of such test equipment, making the use of equipment more flexible and applicable.


Detector Adapters Selection Guide


Specification

OTDR

Type

OT-100-2132-PV#1310/1550

OT-100-2136-PV#1310/1550

OT-100-2136-PV#1310/1625

OT-100-2224-PV#850/1300

Wavelength (nm)

1310/1550

1310/1550

1310/1625

850/1300

Dynamic Range (dB)

32/30

36/34

36/34

24/24

Distance Range (km)

0.1~180

0.1~240

0.1~240

0.1~5

Pulse Width (ns)

3/5/10/30/50/100/275/500/1000/2500/10000/20000

3/5/10/30/50/100/275/500/1000/2500

Event Dead Zone (m)(2)

0.75

2

Attenuation Dead Zone(m)(2）

3.5

10

Linearity (dB/dB)

±0.03

Loss Resolution (dB)

0.001

Ranging Resolution (m)

0.001

Ranging Accuracy (m)

±(0.75+0.005% x distance+ sampling resolution)

Data Format

SOR/PDF/HTML

Laser Source

Wavelength (nm)

1310/1550

1310/1550

1310/1625

850/1300

Laser Type

FP-LD

Output Power(dBm)

-20

-40

OPM（Options）

Wavelength Range(nm)

800nm~1700nm

Measuring Range (dBm)

-50~+10

Masurrement Uncertainty

+/-5%

Calibration Wavelength (nm)

850/1300/1310//1550/1625

Connector Type

FC

VFL（Options）

Wavelength (nm)

630nm~670nm

Working Mode

CW/1Hz

Output Power (mw)

>1

Connector Type

FC

General Paratmeter

Memory Capacity

16G(Extensible)

Monitor Type

5.5-inch IPS HD Display

Power Supply

Lithium battery:5V, 6400mAh

Operating Temperature (°C)

10~40

Storage Temperature (°C)

-40~70

Humidity

0 % to 95 % (Non0condensiong)

Weight (kg)

<1.150

Demension (mm)

200*110*65

Note:

[1] All specifications are applicable at a temperature of 23 °C±1°C

[2] Deadzone test conditions: SM1550/3ns/0.65km/60s; The event reflection coefficient is -45±2dB


Ordering Information

OT-100 Single fiber single&multi mode series OTDF


Example:

Model:

OT-100-2132-PV-FP#1310/1550

OTDR dual wavelengths single mode, 32dB dynamic range, with OPM, with VFL, FC/Pc adapter, wavelengths 1310 and 1550
