CR600 60Gbaud Optical/Electrical Clock Data Recovery Unit

High Speed, Low Jitter, High Sensitivity, Multi-Mode Compatibility, Automatic Locking, Frequency Division Output

· Supports NRZ and PAM4 signals, with rates up to 120 Gbps

· Compact, portable, and easy to use

· Integrated OE and clock recovery design

· Supports single/multi-mode optical signals with sensitivity better than -10dBm

· Ultra-low random jitter < 250 fs RM

Product Details
Specification Parameters
Document Download
Service Support
Related Products
Product Details

彩页-CR600 光电时钟恢复单元-CN-2025.01.13_00(1).jpg

Product Overview

The Dimension CR600 Optoelectronic Clock Recovery Unit supports both NRZ and PAM4 modulation formats, with the capability to recoveroptoelectronic clock up to 60 GBaud. The system integrates single and muli-mode OE conversion circuits, and clock recovery circuits, making itsuitable for both electrical and optical applications. The unit meets the stringent requirements for high sensitivity and low inherent jiter, ensuringexcelent measurement accuracy. With a user-friendly interface, itis easy to conigure and use. Whether you're testing computer systems, opticalcommunicalion svstems, or veriving standards comolance the Dimension cR600 Clock Recoverv unit oers an outstanding. hiohiy reliable. angcost-efective clock recovery solution.


Key Feature

· Supports NRZ and PAM4 signals, with rates up to 120 Gbps

· Compact, portable, and easy to use

· Integrated OE and clock recovery design

· Supports single/multi-mode optical signals with sensitivity better than -10dBm

· Ultra-low random jitter < 250 fs RM


Product Applications

· Optical Transceiver Module

· Subsystem Clock Recovery

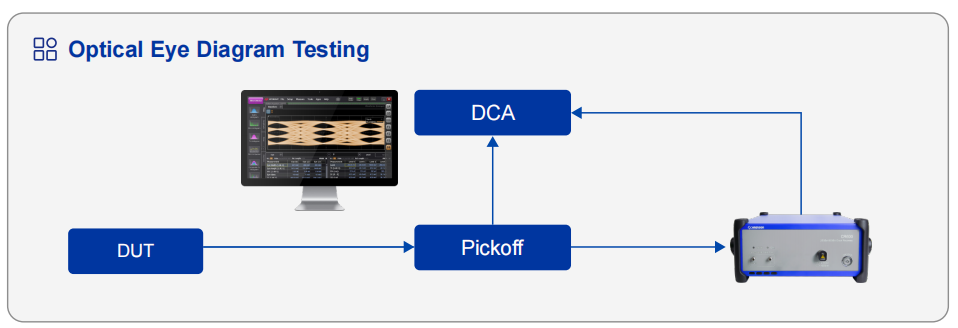

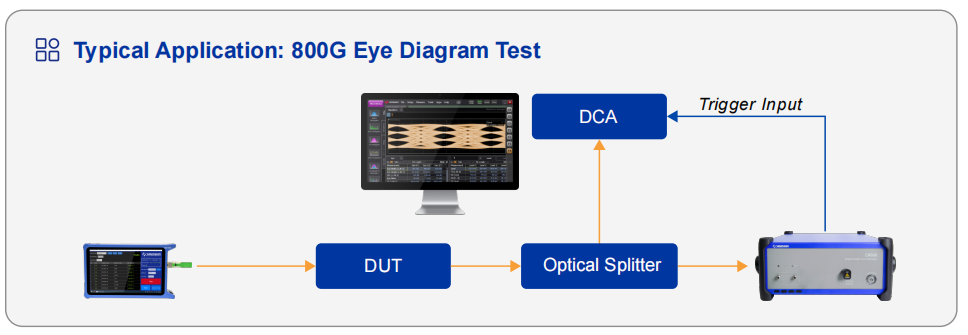

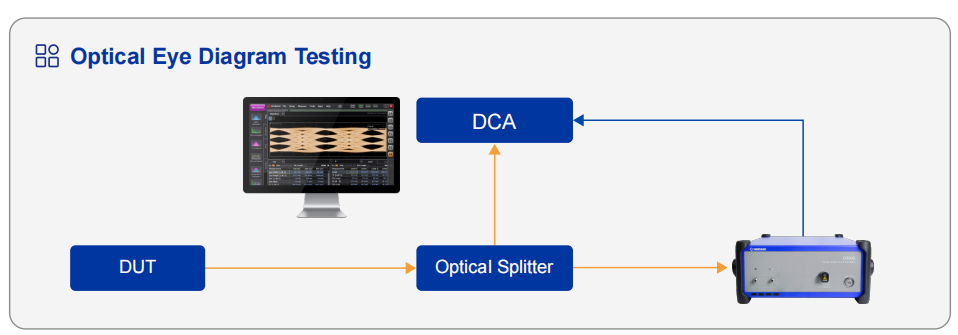

· Eye Diagram Test




Panel Introduction


Panel Introduction

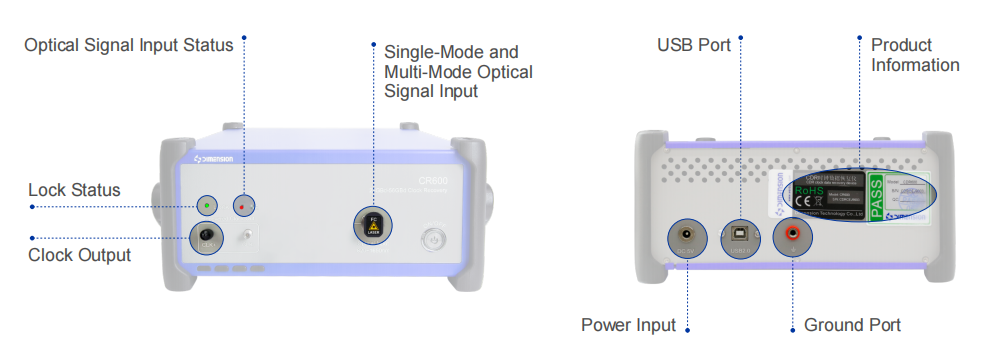

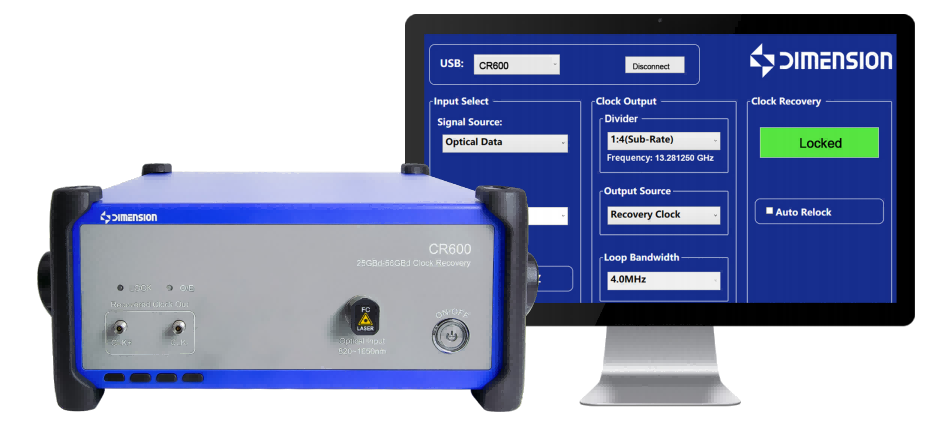

The CR600 provides a simple user interface, allowing easy parameter setting and selection, while intuitively displaying the operating status and relevant parameters of the clock recovery unit.


Communication Protocol

The CR600 comes with a comprehensive communication protocol, which allows users to set various parameters and readthe operating status of the unit via the USB port, Program examples are provided, enabling users to easily integrate theCR600 into their testing systems.



Specifications

Electrical Parameters
Data Rate Input Range

24-30 Gbaud;48-60 Gbaud

Modulation TypeNRZ/PAM4
OE Output Connector Type2.92 mm female, 50 Ω
OE Output Amplitude400 mVpp @ 56 GBd
CLk In Connector Type2.92 mm female, 50 Ω
CLk In Amplitude (Max.)600mVpp 56 GBd
CLk Connector Type2.92 mm female, 50 Ω
CLk Amplitude (Diff.)700 mVpp @ 26.56GHz
CLk In Sensitivity (Diff.)100 mVpp @ 56 GBd
Divide Ratio1/2、1/4、1/8、1/16、1/32、1/64
Output Random Jitter<230 fs @ 13.28GHz
Loop Filter Bandwidth4 MHZ
Standard Signals± 100ppm
Auto ReclockingYes
Internal Clk OutputYes
CLk Diff. Output

Yes

Optical Parameters

Data Rate Input Range

24-30 Gbaud;48-60Gbaud

Sensitivity

-12 dBm @ 53.125 Gbaud PAM4 SM

-10 dBm @ 53.125 Gbaud PAM4 MM

Optical Signal Type/modeIngal-Mode, Multi-Mode
Wavelength Range820~1650nm
Return Loss

16dB

Optical Connector Type

SM: FC/PC 9/125 um

MM: FC/PC 50/125um

Others

Operating Temperature

10℃ to+40℃ (50°F to 104°F)

DC Power Supply5V
Humidity95% RH, non-condensing
Communication PortUSB、LAN
Power Consumption6W


Order Info

ModelDescription
CR60060Gbaud Optical Electrical Clock Data Recovery Unit
