800G LC Transceiver Visual Inspect & Clean

800G LC Transceiver Visual Inspect & Clean

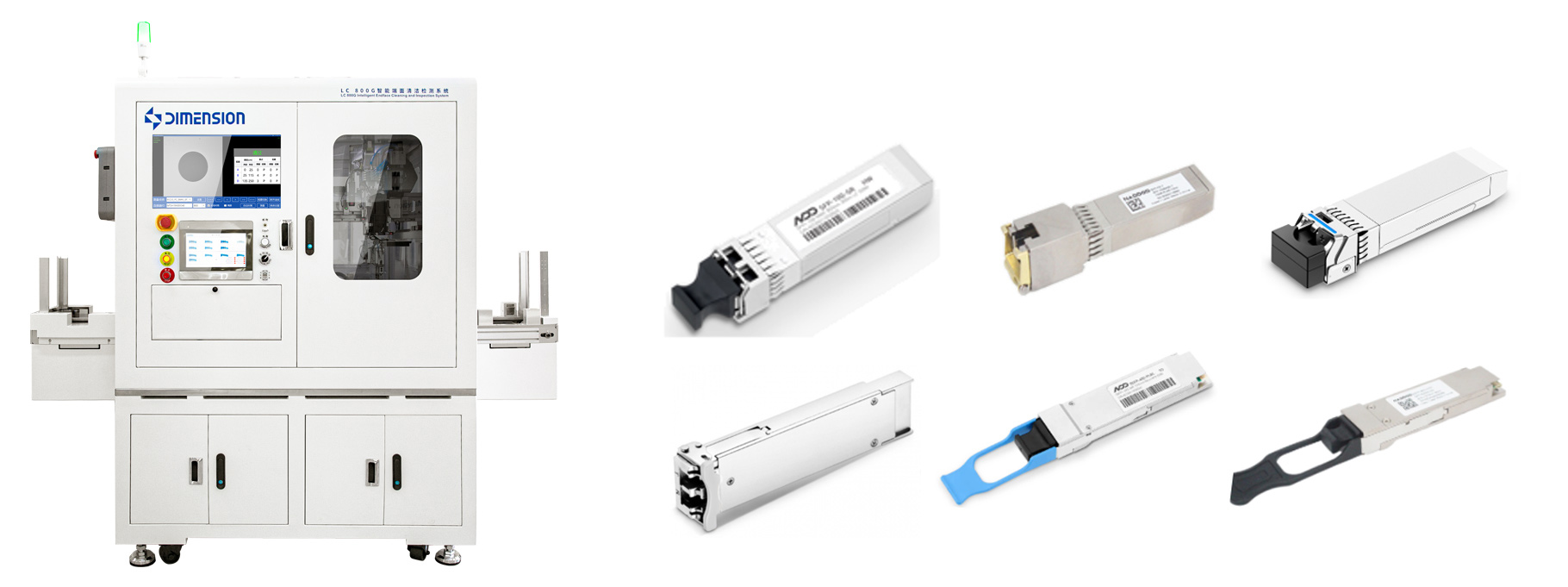

Functions:LC Optical Module Automated End-Face Cleaning & Inspection System
Automated end-face cleaning & inspection for LC optical modules
Automated tray stacking & loading/unloading
Automated end-face cleaning & inspection
Barcode scanning, image saving, report generation, MES integration, NG sorting
Dual workflows: Clean-then-Inspect & Inspect-then-Clean

Product Details
Specification Parameters
Document Download
Service Support
Related Products
Product Details

Product Overview

A fully automated intelligent system integrating auto-loading/unloading, cleaning, and inspection. Features high efficiency, reliability, and Return on Investment, commonly used in technical/business contexts for brevity, with industry-leading detection capabilities. Proprietary auto-cleaning technology ensures simple operation and maintenance.


Main advantages

Functions:LC Optical Module Automated End-Face Cleaning & Inspection System
Automated end-face cleaning & inspection for LC optical modules
Automated tray stacking & loading/unloading
Automated end-face cleaning & inspection
Barcode scanning, image saving, report generation, MES integration, NG sorting
Dual workflows: Clean-then-Inspect & Inspect-then-Clean


Main applications

Automated Cleaning, Inspection & Handling Systems for:
Single LC
Dual LC
Quad LC
4LC Linear


Performance parameter

Dimensions: W2400 x D1350 x H2000mm

Cleaning Yield Rate: ≥ 98%

Defect Detection Accuracy: ≥ 99.5% for defects ≥ 1 μm

Power Input: 220V, 50/60Hz

Compressed Air: 0.5-0.65MPa
