Fully Automated Cleaning and Inspection System for 1.6T/800G Optical Transceivers

MPO 1.6T & 800G High-Speed Optical Module Automatic Cleaning & Inspection System

Functions: Auto cleaning, inspection, loading/unloading for 1.6T & 800G high-speed optical modules.

Inspection: Contamination, scratches, scuffs, damage.

Cleaning: Cleaning pen pre-cleaning + solvent cleaning.

Tray feeding, flexible fixture for fast product changeover.

Independently developed high-reliability system by Weidu.

High integration, good ROI, stable performance, user-friendly operation.

Product Details
Specification Parameters
Document Download
Service Support
Related Products
Product Details


Product Overview

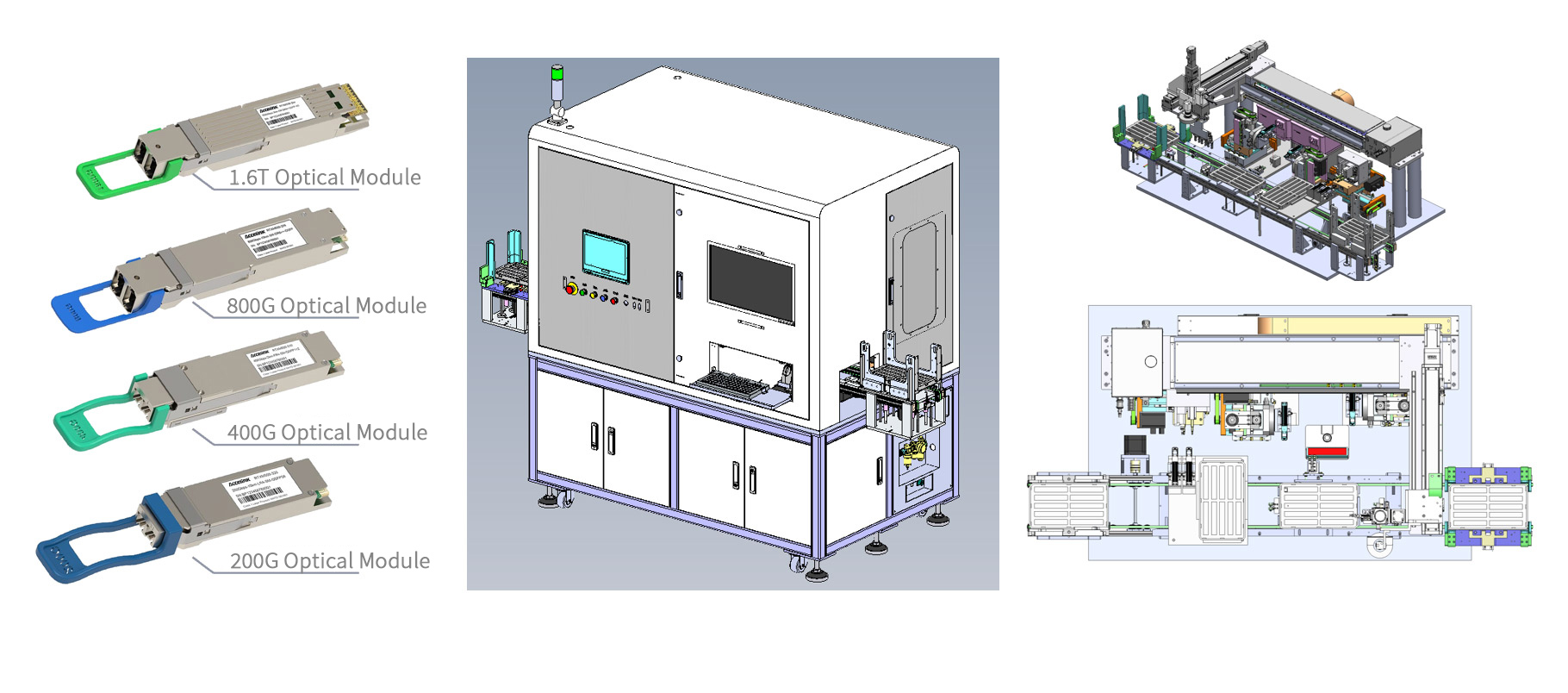

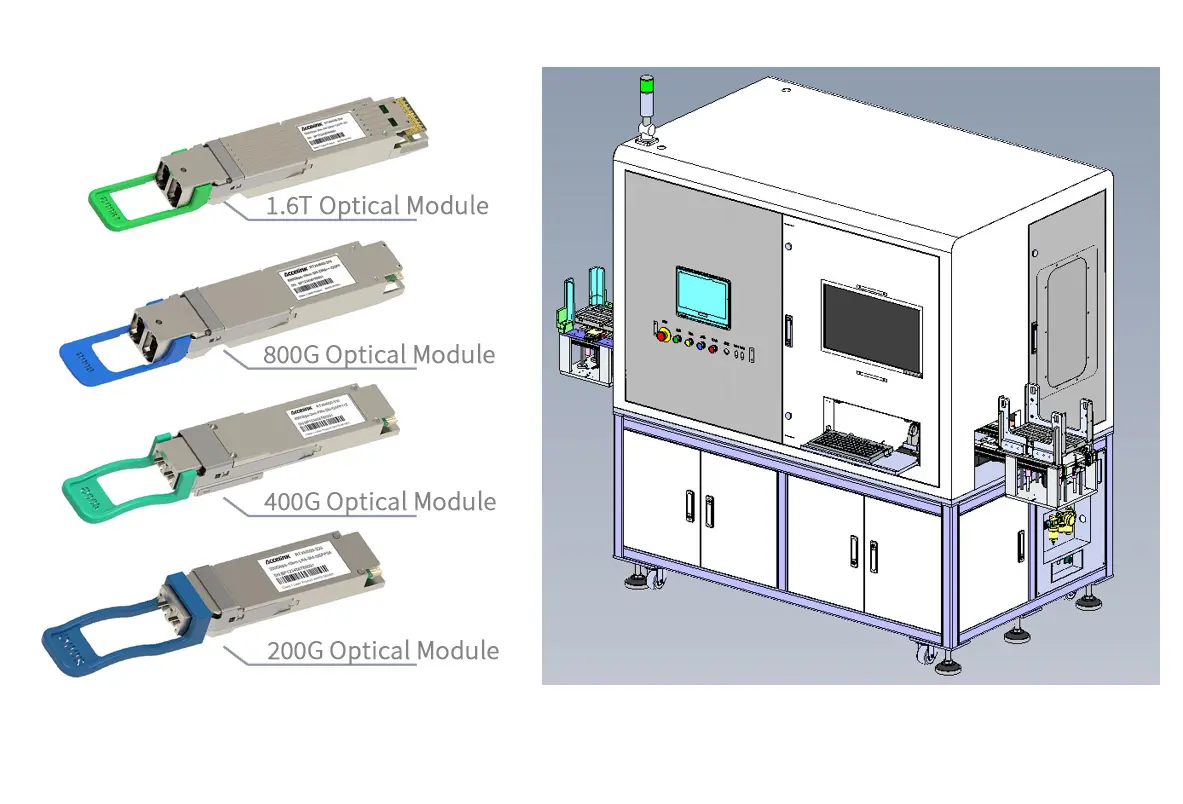

The fully automatic end-face cleaning and inspection system for MPO optical modules is an intelligent all-in-one system integrating automatic loading/unloading, automatic cleaning and automatic inspection. It features high efficiency, high reliability and attractive ROI. It delivers industry-leading automatic inspection capability and adopts proprietary patented automatic cleaning technology, with easy operation and maintenance.


Key Advantages

Functions: Automatic cleaning, inspection, loading and unloading for MPO 1.6T, 800G and 400G high-speed optical modules.

Inspection Items: Contamination, scratches, scuffs and damage.

Cleaning Method: Pre-cleaning with cleaning pen, solvent cleaning via cleaning machine.

Tray loading & unloading; flexibly designed fixture supports quick model changeover.


It adopts next-generation leading and highly reliable automatic inspection capability to guarantee consistent high quality of finished products.

Unique automatic cleaning technology with independent invention patents provides efficient and reliable cleaning performance.

The solution is compact, high-precision, high-efficiency and highly automated.

It brings favorable equipment ROI, stable operation and simple maintenance.

Diversified data storage architecture supports comprehensive quality traceability throughout the customer’s production process.



Main Applications

Automatic cleaning, inspection, loading and unloading for 1.6T optical modules

Automatic cleaning, inspection, loading and unloading for 800G optical modules

Automatic cleaning, inspection, loading and unloading for 400G optical modules


Performance Parameters

  • Dimensions:W2200 x D1400 x H1900mm

  • Throughput: : ≤20s/endface(12 fibers)

  • Cleaning yield ≥95% Defect (≥1μm)detection accuracy ≥99.5%

  • Power Input:220V,50/60Hz

  • Compressed Air:0.5-0.65MPa
