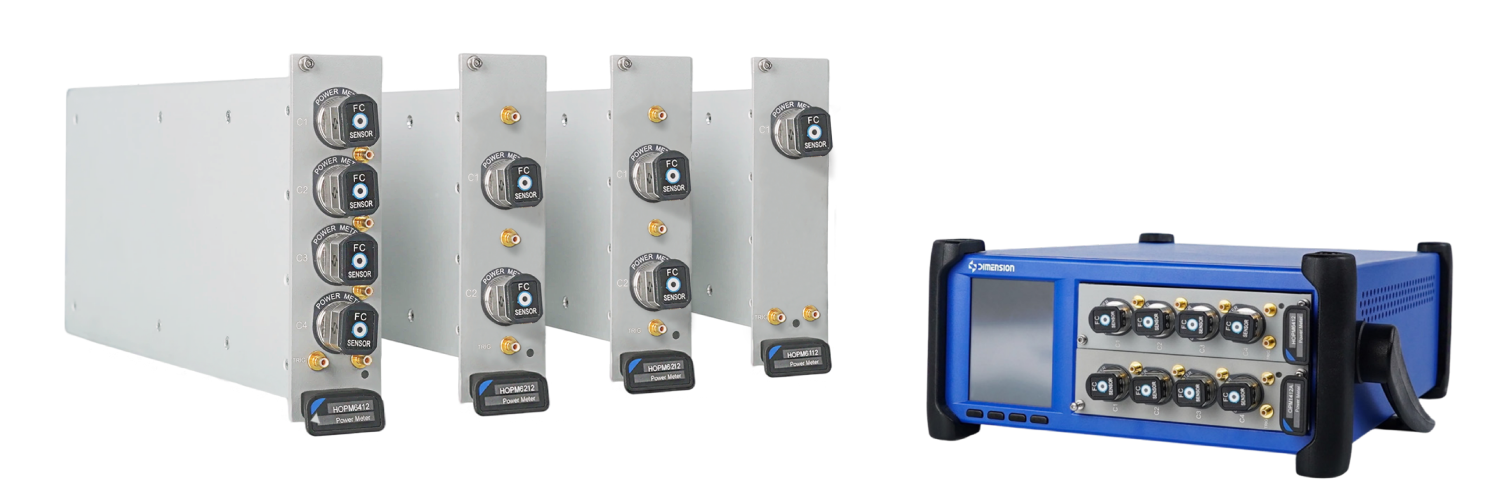

The Dimension OPM optical power meter series modules include five types: conventional series, high-speed series, high-power series, high sensitivity series, and external probe series. All modules are compatible with the Dimension ALPHA and OMEGA universal optical testing platforms. Platform based testing solutions can provide fast, accurate, and flexible power measurement, including detection of weak and small signal changes, as well as accurate measurement of ultra-high light power.

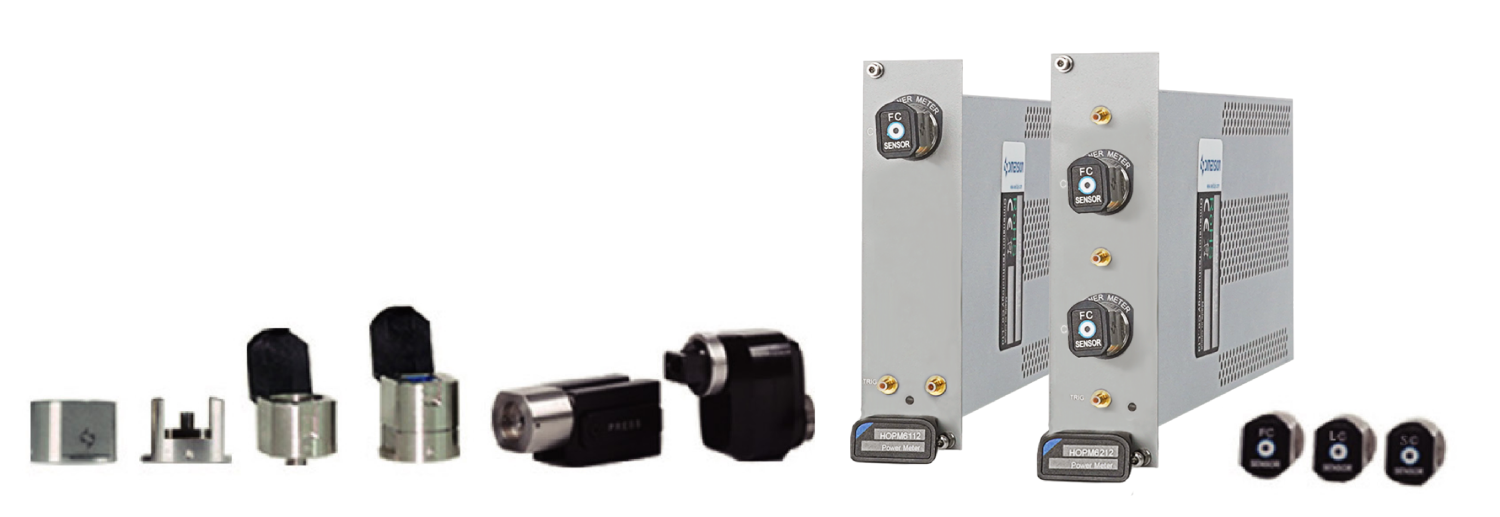

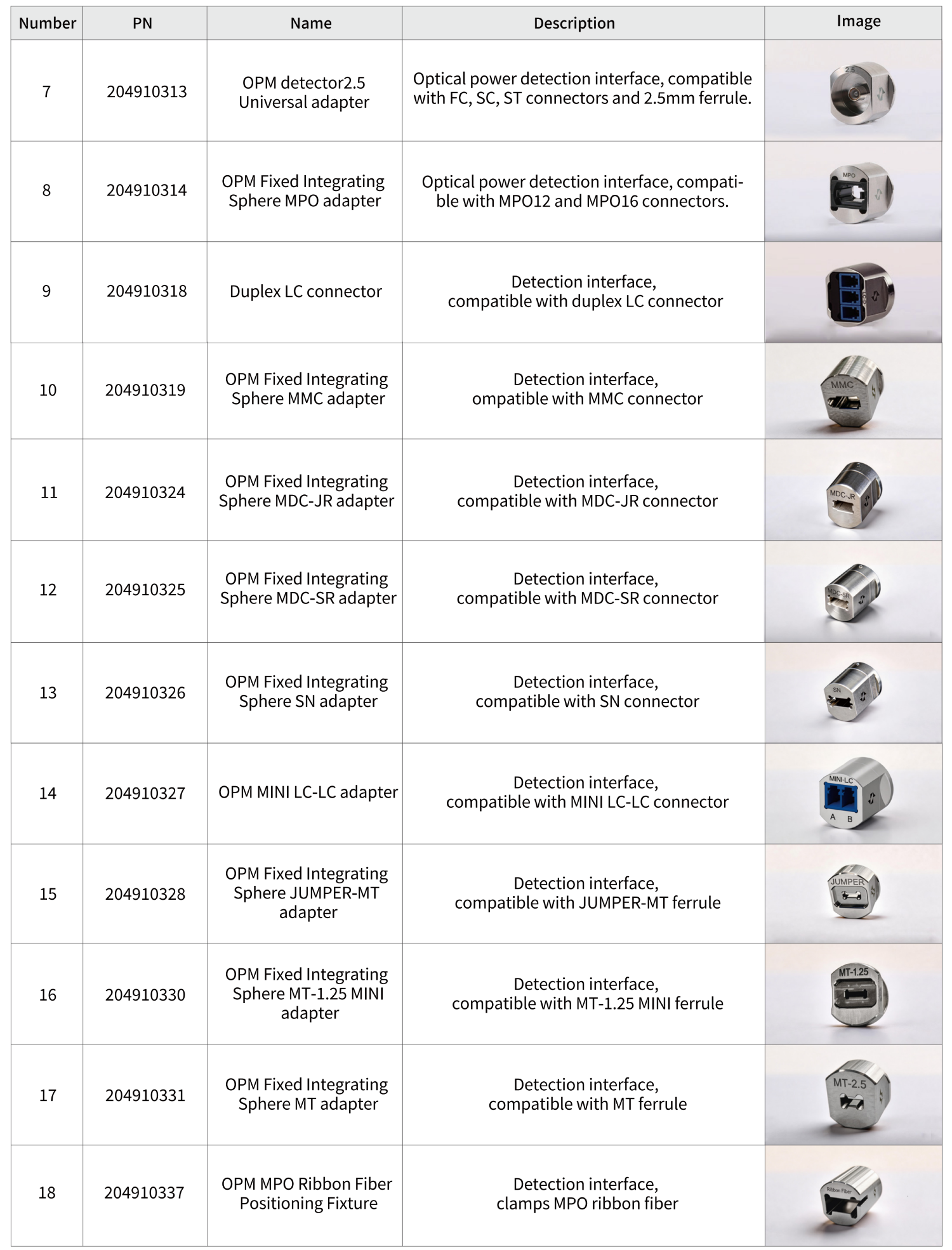

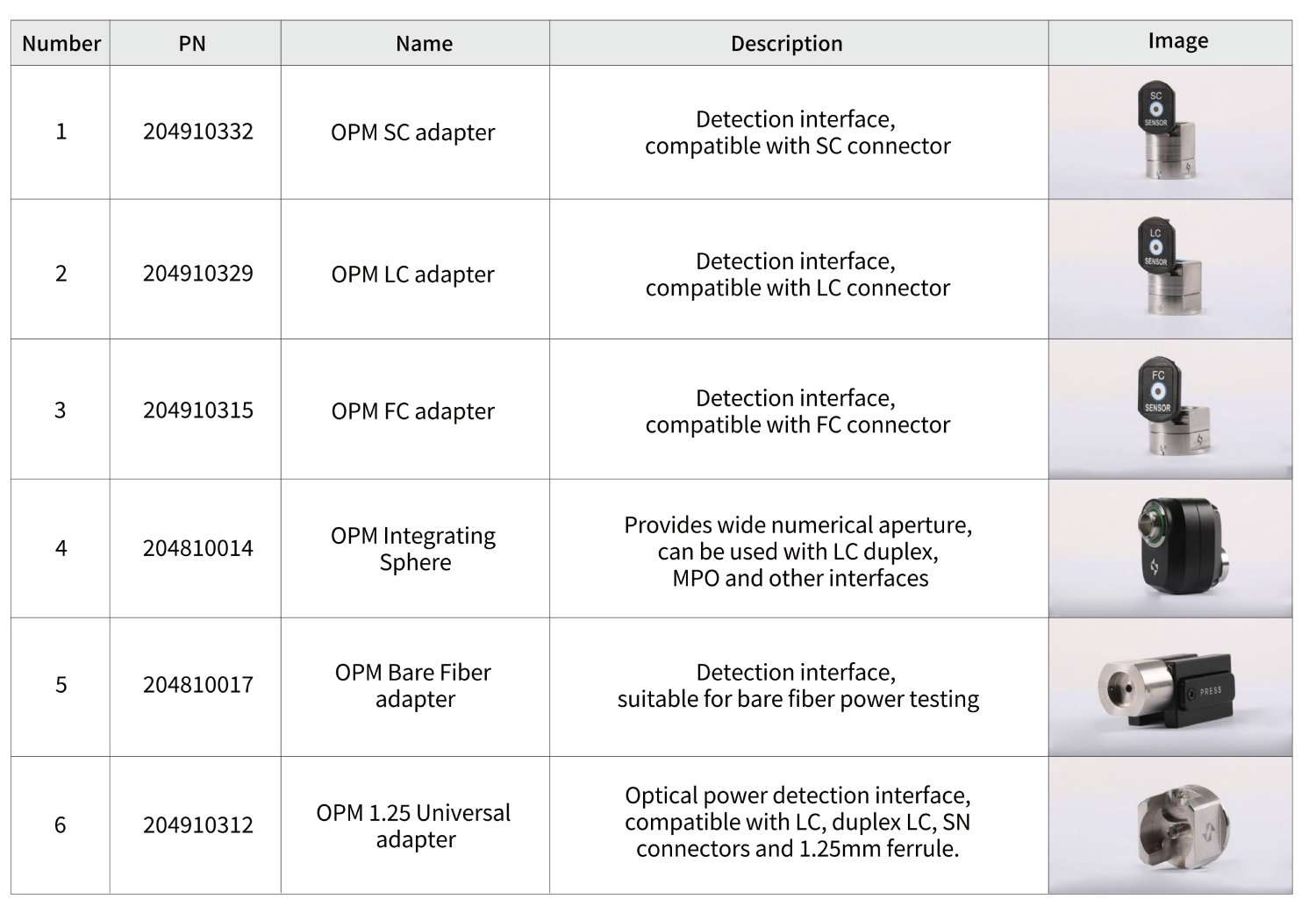

For user convenience and maximum flexibility, the Dimension optical power meter module provides a wide range of interchangeable detector adapter connectors (available for various connector types as detailed in the attached table), as well as fiber optic clamps that allow for bare fiber measurement. The product comes with a connection (FC) detector adapter as a standard accessory, and also provides an external probe extension cable for remote head users to choose from.

Platformization+modular design

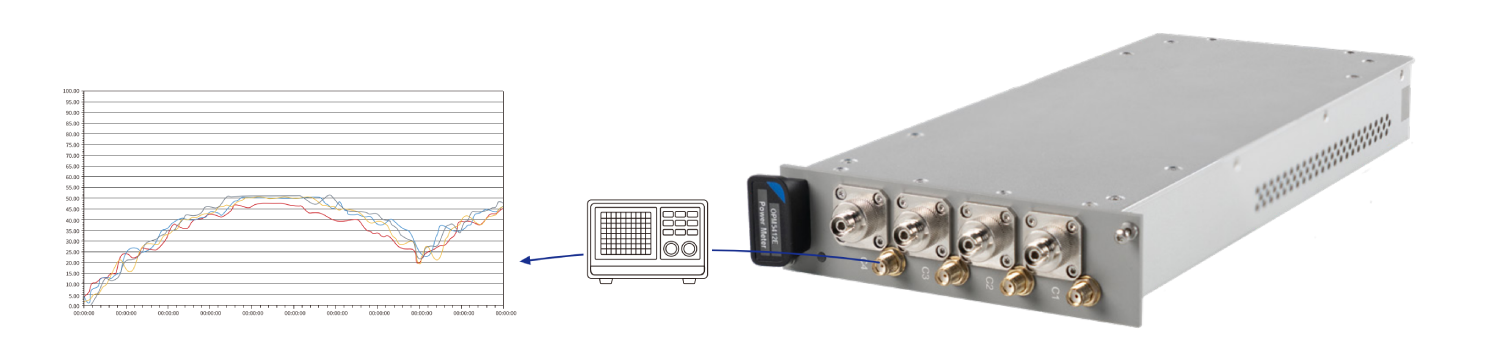

All OPM spectrophotometer functional modules are compatible with the ALPHA and OMEGA universal optical testing platforms. Through programming control, they can work together with other functional testing modules, achieving a one-stop automatic testing solution.

High sensitivity series

Main advantages

• Wavelength range: 850nm~1650nm

Can provide -90dBm weak signal detection and wide dynamic range (100dB)

User configurable trigger inputs and analog outputs

Compatible with single-mode and multimode fibers

Main applications

Power measurement of weak light signals

• Laboratory
