TwoWay Fiber Polarity and Return Loss Meter
Dual fiber IL, RL, and polarity three in one automatic testing
RL winding free test, IL, RL and polarity detection time less than 2 seconds
Save workstations and increase production testing effectiveness by over 300%
RL minimum detectable -80dB (single mode)
The shortest measurement fiber length is 0.7 meters
Support single core and dual LC, CS, SN, MDC and other fiber optical jump testing
Product Overview
The TwoWay dual channel polarity loss tester is a new product developed by Dimension Technology to address the issues accounted for in current dual fiber jump testing With innovative design concepts, it can achieve automatic testing of IL, RL, and Polarity simultaneously The simultaneous testing time of IL, RL, and Polarity is less than 2 seconds (fast mode), which can significantly improve testing efficiency, reduce customer equipment investment costs, and ensure the measurement reliability of IL and RL while improving efficiency It can achieve a minimum echo loss detection of -80dB (single mode) Two Way's fast and accurate measurement function is an effective tool for improving production efficiency and quality control
Main advantages
Dual fiber IL, RL, and polarity three in one automatic testing
RL winding free test, IL, RL and polarity detection time less than 2 seconds
Save workstations and increase production testing effectiveness by over 300%
RL minimum detectable -80dB (single mode)
The shortest measurement fiber length is 0.7 meters
Support single core and dual LC, CS, SN, MDC and other fiber optical jump testing
Main applications
Performance testing of jumpers and connectors
Performance testing of optical passive devices
Dual fiber IL, RL, and polarity three in one automatic testing
The TwoWay dual channel polarity loss tester can quickly achieve winding free dual fiber jump loss testing and insertion loss testing, and can also achieve polarity detection of dual fibers, truly achieving a three in one automatic testing of loss and polarity
RL winding free test, loss and polarity detection time less than 2 seconds
Two Way is based on the principle of optical time domain detection to achieve wrap free testing of echo loss Using high speed sampling design and software optimization algorithms, the total time for insertion loss, return loss, and polarity detection is less than 2 seconds (fast mode)
Save workstations and increase production testing effectiveness by over 300%
The TwoWay dual channel polarity loss tester can achieve automatic testing of IL, RL, and Polarity simultaneously, identifying the need for employees to repeat plug and switch measurement jumpers and equipment between testing IL/RL and polarity The simultaneous testing time for IL, RL, and Polarity is less than 2 seconds (fast mode), which improves testing effectiveness by more than 300% and can also reduce customer equipment investment costs
RL minimum detectable -80dB (single mode), The shortest measurement fiber length is 0.7 meters
Two Way options a self-developed high sensitivity detection circuit and optimized software algorithm, with a minimum RL of -80dB (single mode) detection, which can meet the detection requirements of high performance single mode jumper (SM/APC)

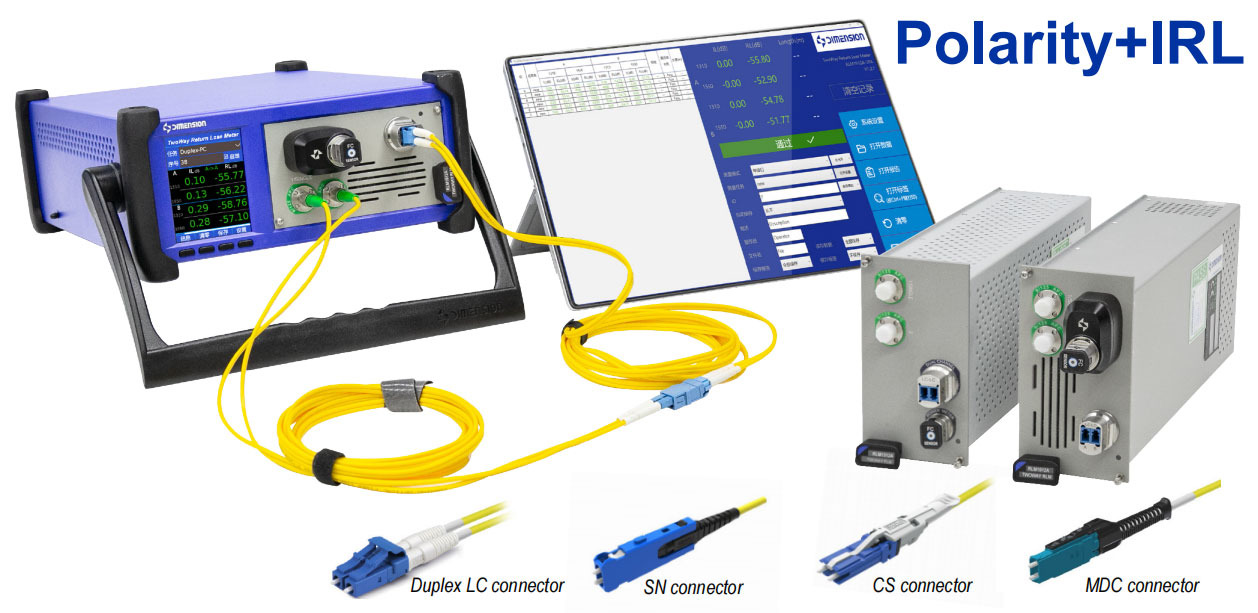

Rich and interchangeable, high reliability detector adapter connectors, compatible with testing single core/manual fiber patch cores
To meet the different needs of customers, TwoWay has developed a series of rich, interchangeable, and highly correlated detector adapter connectors, including new types of connectors all as dual LC, SN, CS, MDC, etc., which are easy to use, can test loss and polarity in one go, and do not require repeated plugging and unplugging

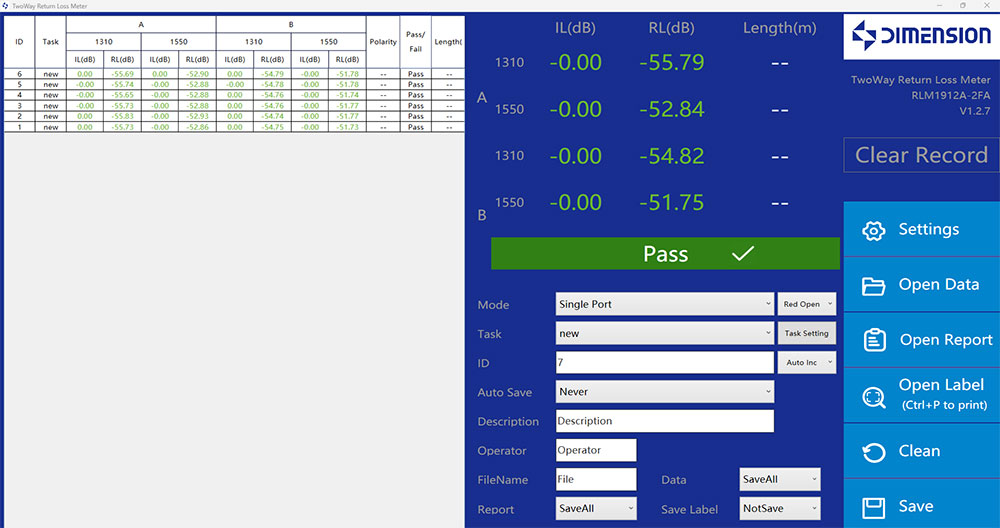

Support PC control software, automatically save test data reports, and support remote network control
Two Way has a consensus and clear software UI design, allowing users to customize test reports and automatically save and upload test data and reports
Platform+modular design, conservative application expansion

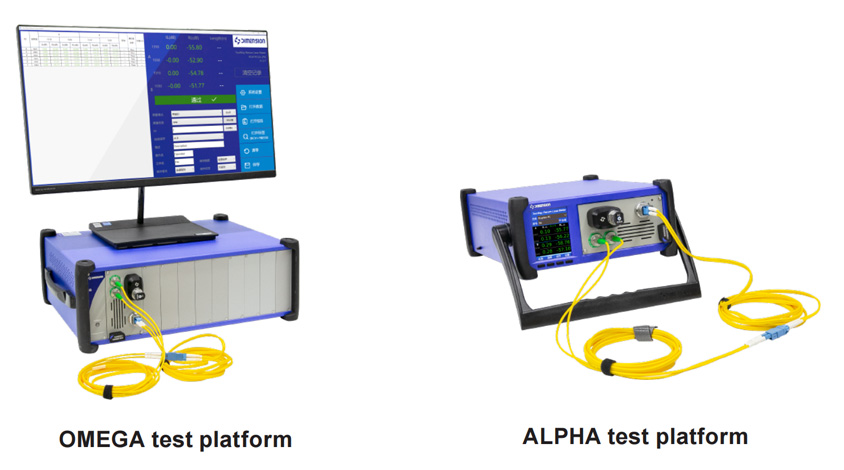

The universal optical testing platform of Dimension Technology provides a complete set of optical testing solutions, including dual slot ALPHA testing platform and 11 slot OMEGA testing platform It can be compatible with various functional testing modules, including RLM insertion and loss testing modules, and has significant advantages such as hot plugging, programming, strong scalability, easy maintenance and management, and low overall cost Supports multiple control methods such as network, USB, touch screen, and physical buttons
Customers can purchase other functional modules for functional expansion in the future, such as connecting optical switches, optical observers, stable light sources, bit error meters, high speed optical power meters, and other functional testing modules, which can achieve one stop testing of various optical properties of optical devices and other products
Performance parameter
Basic product model | RLM1312A-2FA | RLM5356A-2FP | |
Light source | Fiber type | Single mode 9/125 | Multimode 50/125 |
Light source wavelength | 1310/1550nm | 850/1300nm | |
Light source type | Laser | Laser | |
Environmental flux standard | NA | IEC-61280-4-1 | |
Insertion loss | Insertion loss stability* | ± 0.02dB (< 0.5H) ± 0.03dB (< 8H) | |
Repeatability* | ± 0.02dB | ||
Insertion loss test accuracy | 0-1dB: ± 0.02dB 1-5dB: ± 0.1dB 5-45dB: ± 0.5dB | 0-1dB: ± 0.02dB 1-5dB: ± 0.1dB 5-25dB: ± 0.5dB | |
Loss recovery part | Scope of return loss testing* | -30-80dB | -15-60dB |
Return loss test accuracy* | -30~-70dB: ± 1.0dB -70-75dB: ± 2.0dB | -15~-50dB: ± 1.0dB -50~-55dB: ± 2.0dB | |
Other | Fiber length (shortest) | DUT RL (both ends)> 50dB: 0.6 meters | |
DUT RL (both ends)< 50dB: 1.5 meters | |||
Measurement time | ≪ 2s (fast mode, loss+polarity detection) | ||
Display resolution | 0.01dB | ||
Host section | Working power supply | AC90~260V/50HZ | |
Stable startup time | 30 minutes (storage and usage temperature consistent) 90 minutes (storage and usage temperature consistent) | ||
Suggested calibration cycle | 2 years | ||
Working temperature | 10 ℃~40 ℃ | ||
Storage temperature | -40 ℃~70 ℃ | ||
Size | ALPHA chassis: 359mm×274mm ×115mm, OMEGA chassis: 462mm×374mm×171mm Dual slot module: 285mm×133mm×71mm | ||
Default testing conditions for relevant parameters: The equipment is heated up for 30 minutes&Nbsp; Environmental temperature of 23+/-1 ℃; FC/PC; Single core jumper If multi core wire is used for verification, the error variable caused by the optical switch needs to be added to the parameters (+/-0.03dB) |

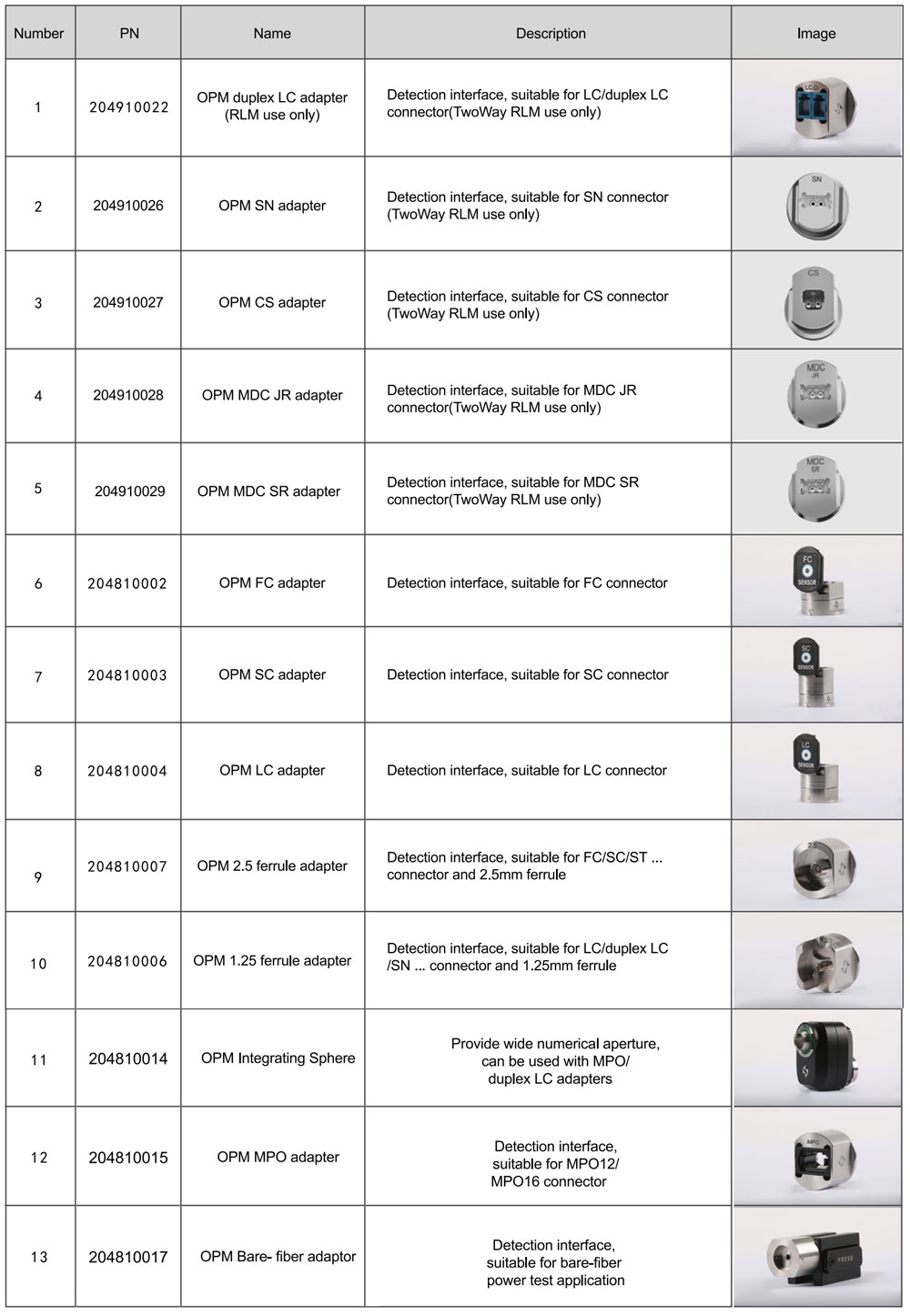

Interface Selection Table

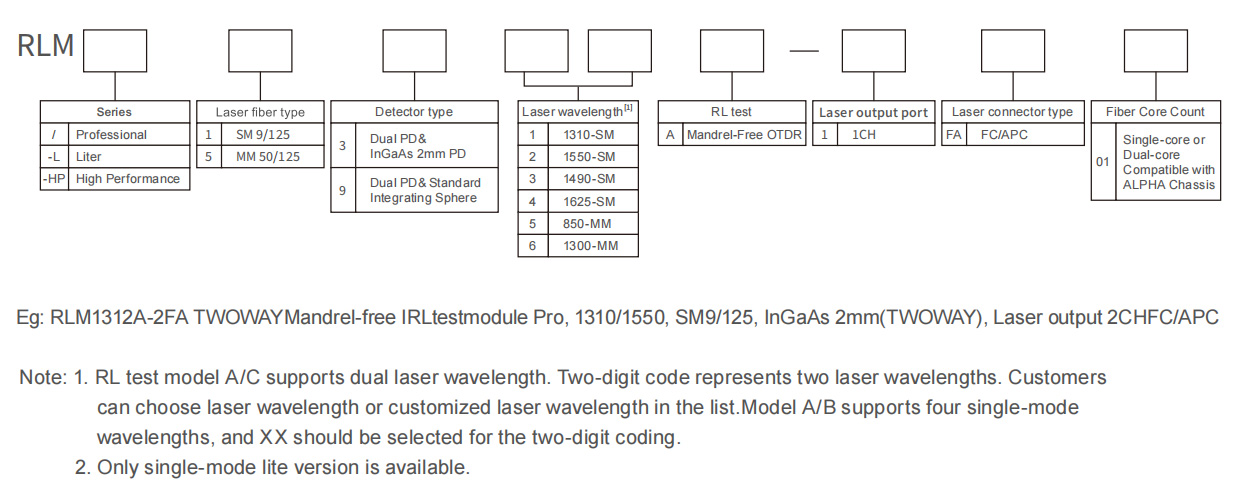

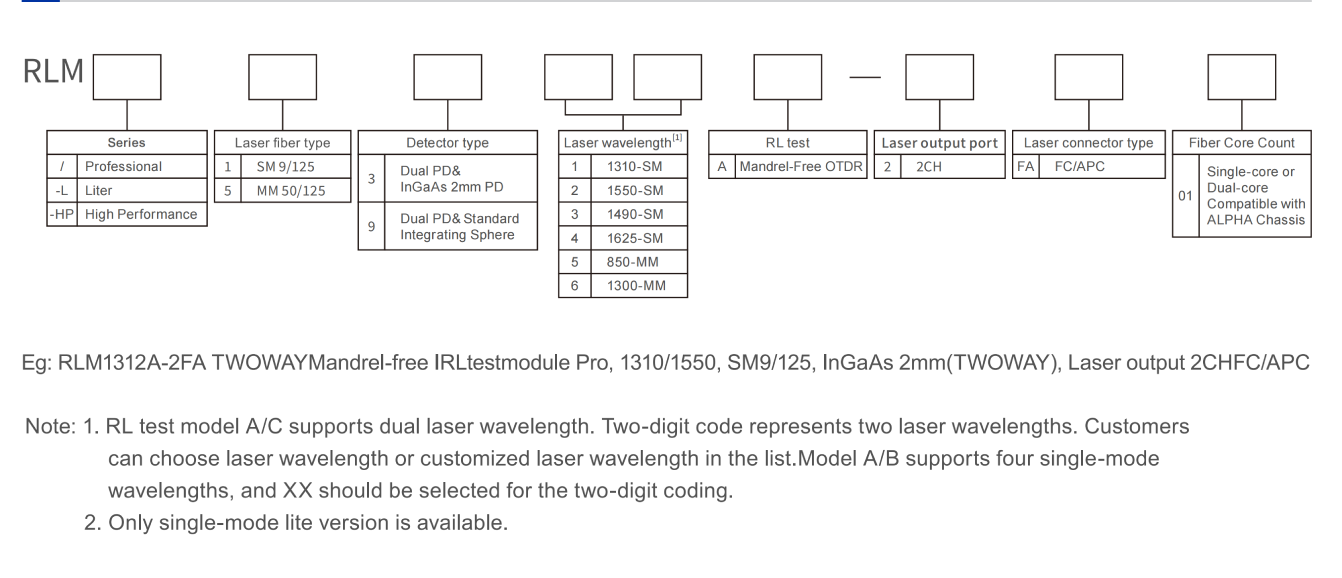

Ordering information
Note:
Note: RL test model A/C supports dual laser wavelength. Two-digit code represents two laser wavelengths.
Customers can choose laser wavelength or customized laser wavelength in the list.Model A/B supports four single-mode wavelengths, and XX should be selected for the two-digit coding.
