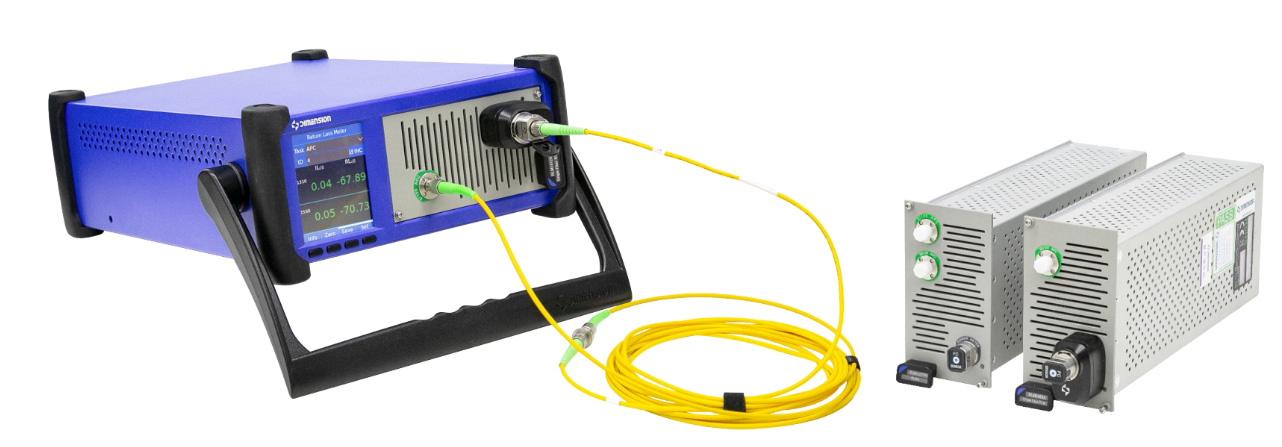

The Dimension single core insertion loss tester options a high stability light source and a high precision optical power meter to achieve wind free return loss testing and high speed insertion loss testing The single wavelength loss detection time is less than 0.5s, and the minimum return loss detection can be achieved by -75dB RLM includes a total of 6 test wavelengths for both single mode and multi-mode (multi-mode: 850nm, 1300nm, single mode: 1310nm, 1490nm, 1550nm, 1625nm) RLM's fast and accurate measurement function is an effective tool for improving production efficiency and quality control

Platform+modular design, conservative application expansion
RL wrap free testing, dual wavelength testing speedLess than 1 second
RL minimum detectable -75dB (single core, single mode)
The shortest measurement fiber length is 0.7 meters
The minimum detection power of the optical power meter is -50dBm
Rich and interchangeable, high reliability detector adapter connectors

Main applications

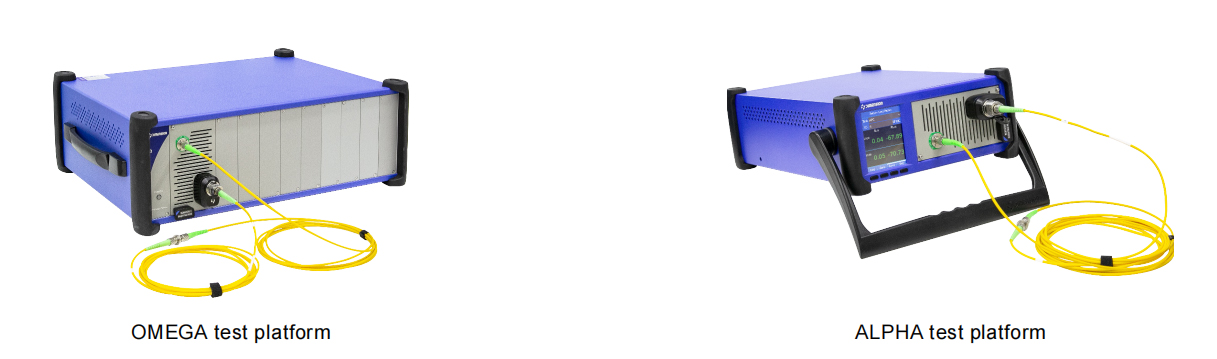

The universal optical testing platform of Dimension Technology provides a complete set of optical testing solutions, including dual slot ALPHA testing platform and 11 slot OMEGA testing platform It can be compatible with various functional testing modules, including RLM insertion and loss testing modules, and has significant advantages such as hot plugging, programming, strong scalability, easy maintenance and management, and low overall cost

Customers can purchase other functional modules for functional expansion in the future, such as connecting optical switches, optical observers, stable light sources, bit error meters, high speed optical power meters, and other functional testing modules, which can achieve one stop testing of various optical properties of optical devices and other products

RL winding free test, dual wavelength testing speed Less than 1 second

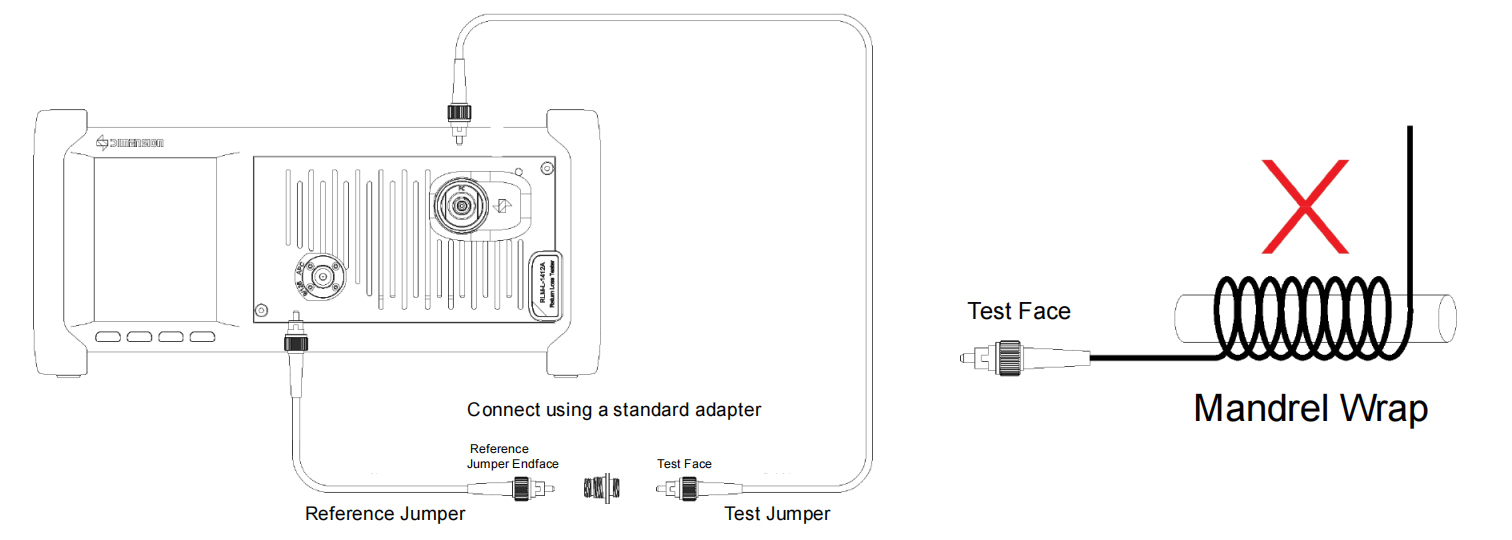

Based on the principle of optical time domain detection, the return loss can be tested without angle, and the integrated design can achieve simultaneous testing of insertion loss return loss Adopting high speed sampling circuit and algorithm optimization, the dual wavelength testing speed is less than 1 second

By using self-developed high sensitivity detection circuits and optimized software algorithms, the RL can achieve a minimum detection of -75dB (single core single mode), which can meet the detection requirements of high performance single mode jumpers (SM/APC)

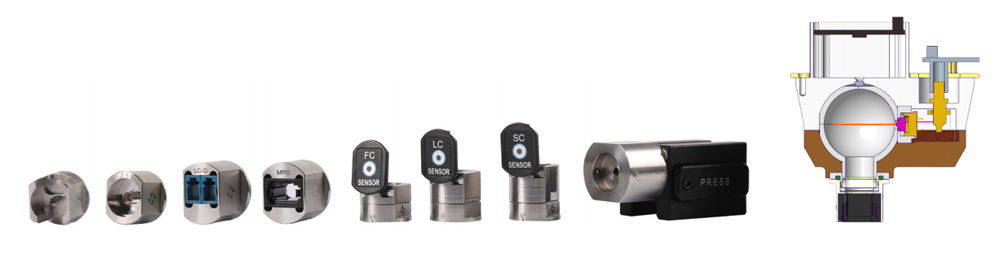

To meet the different needs of customers, Dimension has developed a series of rich and interchangeable, high reliability detector adapter connectors, which are easy to use and optimized for design They are compatible with MPO connectors and dual LC connectors, and do not require repeated plugging and unplugging in one test

Users can customize test reports and automatically save and upload test data and reports
