Multi-channel polarity IRL
RL winding free test, IL, RL and polarity detection, single channel test time as low as 1.5S
Support testing of fiber polarity for various optical devices
Multi core optical fiber IL RL and polarity three in one automatic testing
Save workstations, increase production testing effectiveness by more than 6 times
Rich and interchangeable, high reliability detector adapter connectors
Support PC segment control software, automatically save test data reports, and support remote network control
Product Overview
The current insertion and return loss tests on the market can only test insertion and return losses, and cannot be quickly synchronized and determined by multi core The polarity insertion loss tester of Dimension Technology has completed the automatic testing of multi core fiber IL, RL, and polarity three in one through a new design and technology This device is not only has simple political judgment, but also has political learning function In response to the increasing number of line sequence situations, it significantly improves production efficiency, reduces equipment investment costs, and ensures IL while improving efficiency reliability and accuracy of RL measurement
Main advantages
RL winding free test, IL, RL and polarity detection, single channel test time as low as 1.5S
Support testing of fiber polarity for various optical devices
Multi core optical fiber IL RL and polarity three in one automatic testing
Save workstations, increase production testing effectiveness by more than 6 times
Rich and interchangeable, high reliability detector adapter connectors
Support PC segment control software, automatically save test data reports, and support remote network control
Main applications
Performance testing of jumpers and connectors
Performance testing of optical passive devices
Construction of Automated Jumper Production Line
RL winding free test, IL, RL and polarity detection, single channel test time as low as 1.5S

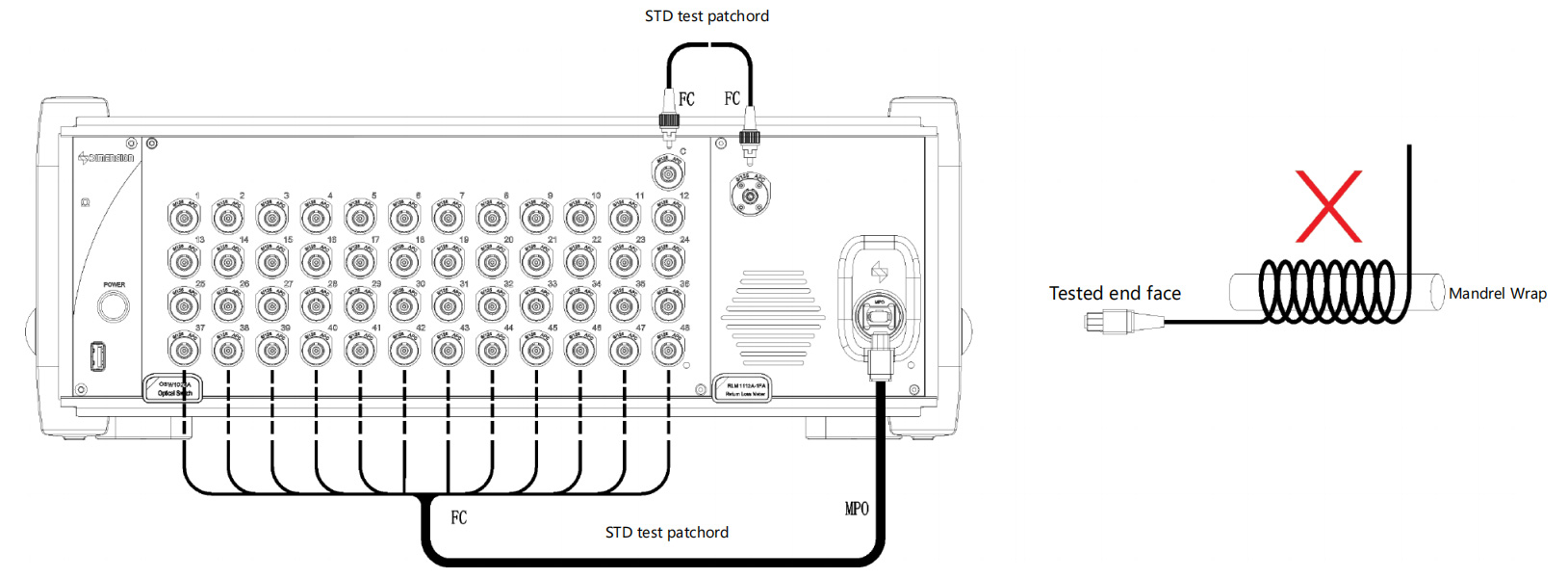

Based on the principle of optical time domain detection, realize non winding testing of echo loss Using high speed sampling design and software optimization algorithms, the insertion loss, return loss, and polarity detection of a single channel can be as low as 1.5S (fast mode)

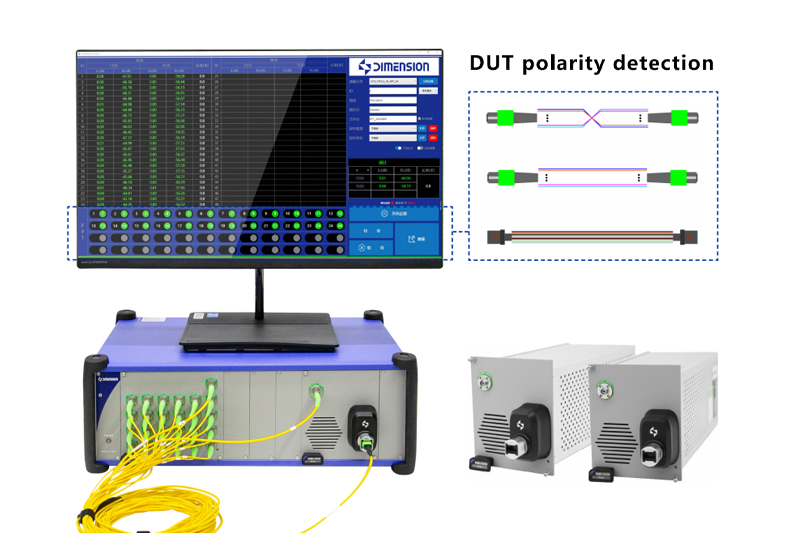

Support testing of fiber polarity for various optical devices
Based on years of research on dimensional technology for optical lenses, a super large photosensitive judgment area has been achieved, and the polarity learning of optical devices within the area can be easily customized and completed
Automatic testing of multi-core fiber IL, RL, and polarity in one
The multi-channel polarity insertion loss tester can quickly achieve winding free multi-core fiber jump loss testing and insertion loss testing, and can also achieve polarity detection of multi-core fibers, truly realizing the three in one automatic testing of loss and polarity
Save workstations, increase production testing effectiveness by more than 6 times
The multi-channel polarity return loss tester can achieve automatic testing of IL, RL, and Polarity similarly, refining the need for employees to repeat plug and switch measurement jumpers and equipment between testing IL/RL and polarity The simultaneous testing time for single channel IL, RL, and Polarity is as low as 1.5S (fast mode) Improve testing efficiency by over 600%, while also reducing customer equipment investment costs

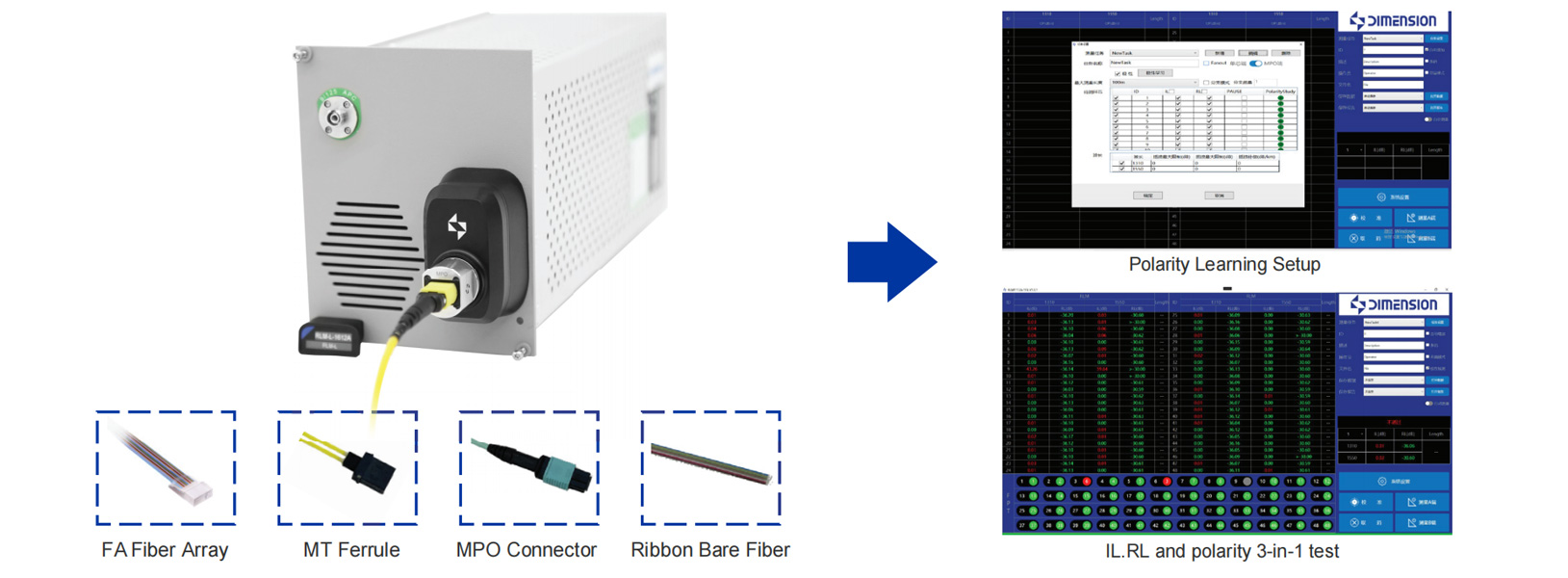

Rich and interchangeable, high reliability detector adapter connectors
To meet the different needs of customers, a series of rich and interchangeable, high reliability detector adapter connectors have been developed, which are easy to use, can test loss and polarity in one go, and do not require repeated plugging and unplugging

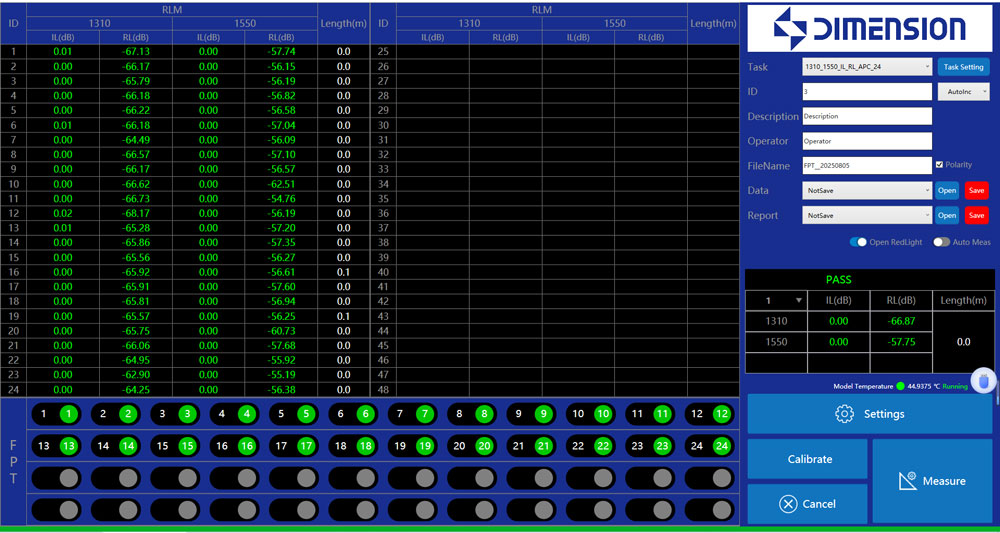

Support PC control software, automatically save test data reports, and support remote network control
With a consensus and clear software UI design, users can customize test reports, automatically save and upload test data and reports&Nbsp;
Performance parameter
Basic product model | RLM1612A-1FA-24 | RLM5656A-1FP-24 | |
Light source | &Nbsp;Fiber type | Single mode 9/125 | Multimode 50/125 |
&Nbsp;Light source wavelength | 1310/1550nm | 850/1300nm | |
&Nbsp;Insertion loss light source type | Laser | LED/Laser | |
&Nbsp;Environmental flux standard | NA | IEC-61280-4-1 | |
Insertion loss* | &Nbsp;Insertion loss stability* | ± 0.02dB (< 0.5H) ± 0.03dB (< 8H) | |
&Nbsp;Repeatability* | ± 0.02dB | ||
&Nbsp;Insertion loss test accuracy* | 0-1dB: ± 0.02dB 1-5dB: ± 0.ldB 5-10dB: ± 0.5dB | 0~ldB: ± 0.02dB 1-5dB: ± 0.ldB | |
Return loss* | &Nbsp;Scope of return loss testing* | 30-80dB | 15~-60dB |
&Nbsp;Return loss test accuracy* | -30-70dB: ± 1.0dB -70-75dB: ± 2.0dB | -15-50dB: ± 1.0dB -50~-55dB: ± 2.0dB | |
Other | &Nbsp;Fiber length (shortest) | DUT RL (both ends)> 50dB: 0.6 meters DUT RL (both ends)< 50dB: 1.5 meters | |
&Nbsp;Single measurement time | ≪ 18s (Quick Mode: SM MPO12< 18S; MM MPO12< 18S) | ||
&Nbsp;Display resolution | 0.01dB | ||
Host section | &Nbsp;Working power supply | AC90~260V/50HZ | |
&Nbsp;Stable startup time | 30 minutes (storage and usage temperature consistent) 90 minutes (storage and usage temperature consistent) | ||
&Nbsp;Working temperature | 10 ℃~40 ℃ | ||
&Nbsp;Storage temperature | -40 ℃~70 ℃ | ||
&Nbsp;Size | &Nbsp;ALPHA chassis: 359mm × 274mm × 115mm OMEGA chassis: 462mm * 374mm * 171mm Dual slot module: 285mmX133mmX71mm | ||
*Default testing conditions for relevant parameters: The equipment is heated up for 30 minutes&Nbsp; Environmental temperature of 23+/-1 ℃&Nbsp; FC/PC single core jumper If multi core wire is used for verification, the error variable caused by the optical switch needs to be added to the parameters (+/-0.03dB) |
Note:

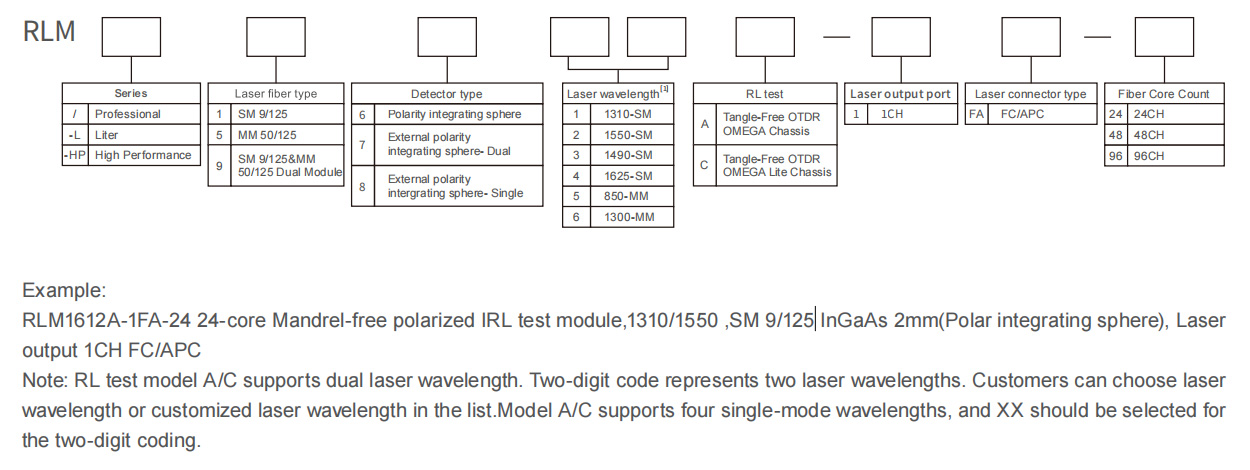

RL test model A/C supports dual laser wavelength. Two-digit code represents two laser wavelengths.
Customers can choose laser wavelength or customized laser wavelength in the list.Model A/C supports four single-mode wavelengths, and XX should be selected for the two-digit coding
